Battery Chargers
Modern intelligent switch-mode chargers are all of the following descriptions. Maintenance chargers, bulk chargers, boost chargers, equalising charger, float chargers. Multi-mode chargers. Don't be confused we can help. Start by finding out your batteries' Ah (Amp hour) capacity, divide that number by 10 and it will give you an idea of the Amps size/capacity charger you need to charge your batteries. We are factory-approved importers of Victron Energy, Traction, Sterling Power & Delta Q.
- Description
- Specifications
- Post a comment
Highly efficient 25A battery charger & power supply
For everyday professional use

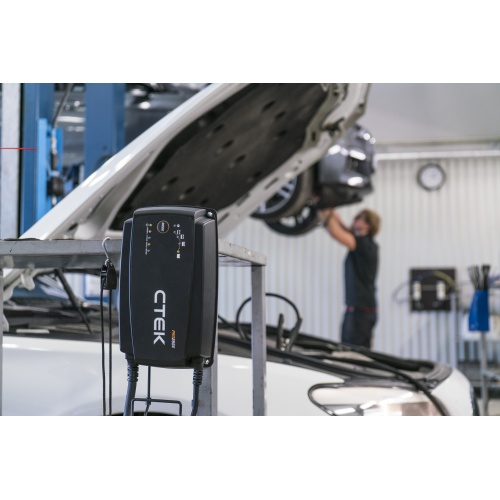

The PRO25SE is an innovative, versatile and highly efficient 25A battery charger and power supply, designed around the needs of the automotive professional. Combining power & advanced technology with safety, portability, and flexibility to work with any 12V vehicle battery including Lithium-Ion (LiFePO4), the PRO25SE is the perfect solution to professional battery charging, in the workshop with its extended DC cable length of 6 metres.
Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25SE has a dedicated lead-acid battery reconditioning program to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault-finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25SE is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment.
- Dedicated Lithium-Ion (LiFeP04) mode
- Compatible with batteries from 40Ah to 500Ah (30Ah to 450Ah LiFePO4).
- SUPPLY mode to support the battery during diagnostic or fault-finding work.
- Fully automatic, easy to use and simple to connect
- Spark proof
- Reverse-polarity protected.
- Integrated safety features, so it’s safe for the battery & the vehicle.
- Built-in temperature sensor to achieve maximum charge levels
- Dedicated lead-acid reconditioning program to restore battery life and recondition flat batteries.
- Lightweight & highly portable
- Tough & robust
Technical Information:
Ambient temperature: -20˚C to +50˚C
Positioning: Portable, Wall mounting (with the special kit)
Warranty: 2 years
Input: 220–240VAC, 50–60Hz, 2.9A max
Output: 14.4V/15.8V/13.6V, 25A max, lead-acid battery types. 13.8V/14.4V/13.3V, 25A max, LiFePO4.
Start voltage: 2.0V
Back current drain*: Corresponding to less than 1Ah/month
Battery types: 12V; WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO4
Battery capacity: 40–400Ah, lead-acid battery types. 30–450Ah, LiFePO4
Battery capacity (maintenance): 500Ah
Charge cables length: 6000 mm (DC cable)
Net weight (unit with cables): 1.8 kg
Gross weight (unit in box): 4.1 kg
Insulation class: IP44 (outdoor use)
Ripple**: Less than 4%
Model Number: 40-197
A chargers purpose
When you are choosing your next car, you carefully consider what you will use it for most. Be that a Micro car or an SUV the engines might be of similar power but the purpose, its intended use is of great importance.
With your charger the usage/environment, for example, in a marine environment, you use a sealed IP44 or better (higher numbers are better) rating. Maybe its internally mounted but still in a sea spray zone so conformity coated board or potted components for a fully sealed solution are ideal. Consideration for what if the power supply doesn't de-rate in hot conditions (internally via thermal control or an external sensor to monitor the battery temperature). That the energy efficiency is a high percentage to reduce heat and chance of failure and if you travel internationally with your charger that it's rated for 110VAC input and 230VAC input (universal power supply). Accessory items are available if required and technical support is available from the place of purchase.
