Batteries DC Power in a box
Everything has a purpose, this ethos lies at the core of our decision-making at Element 82 and batteries are no different. Cranking/Starting or high power/burst energy vs. Deep Cycle which is the term used for a discharge of energy before any recharge. That's the basis or starting point from there, capacity, expected life cycle, physical size, and layout considerations. There are so many options because batteries have so many applications.
Deep Cycle is used in house/service batteries in applications like a boat or motorhome when there is a sustained discharge from them before a recharge might occur overnight connected to mains or in a boat when the motor is started and recharge is provided via the alternator. Many brands of AGM batteries have a high power discharge capability, having said that it might only be 5-8 times its Amphour rating. So if a 100Ah battery refers to its ability to discharge 10 amps over 10 hours, it might also have a fast discharge capacity of 600 amps, referred to as 600CA (Cranking Amps). In these instances, while the battery might be classed as a deep cycle it has usable power for cranking. Numbers only get better when it's a 200Ah battery with 1200CA, you can see how this is sometimes why AGM batteries might be referred to as Dual Purpose Batteries.
- Description
- Specifications
- Post a comment

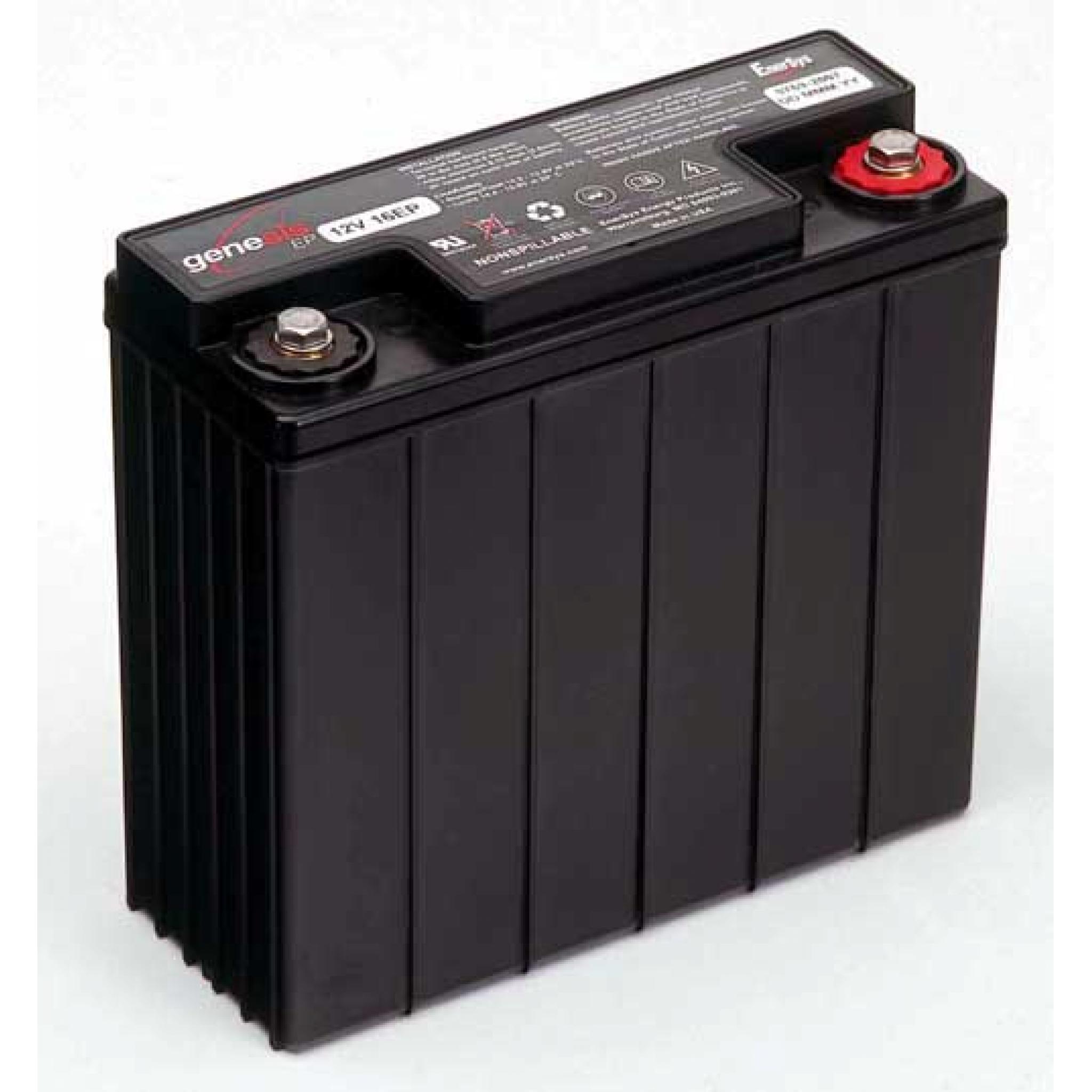

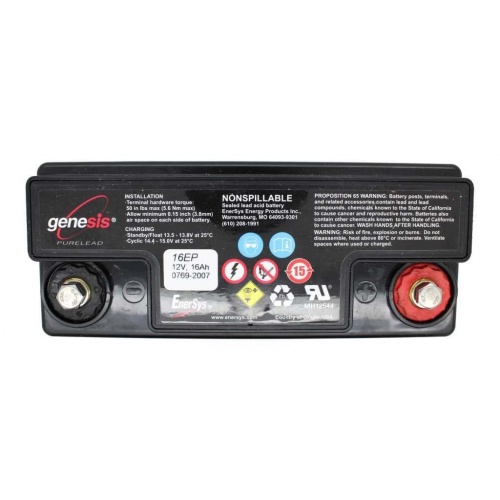

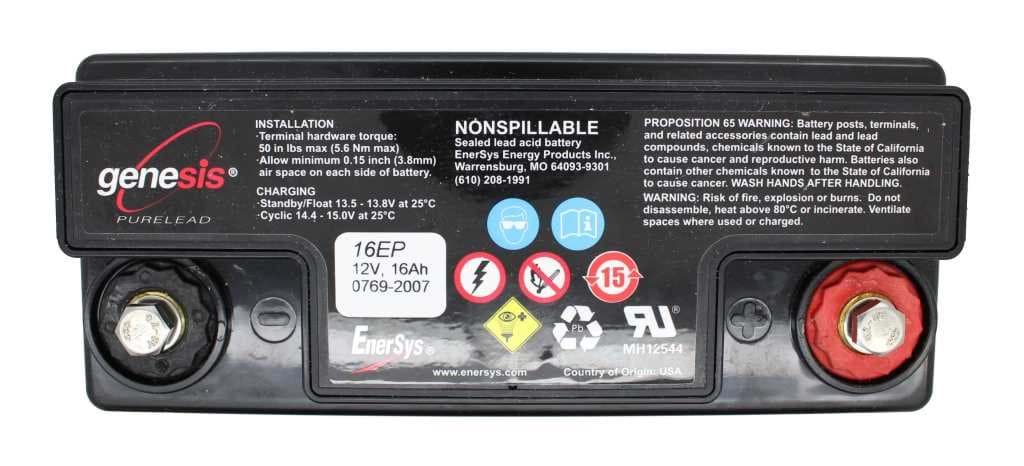

The Genesis 16Ah EP series battery from Enersys uses Thin Plate Pure Lead (TPPL) technology to provide high power discharge, high cranking suitable for UPS systems with high initial current requirement. It's also perfect for Jump Start battery power in a standard size utilised by many global manufacturers. If you want to increase the performance of your run pack then use these batteries.
Technical Information
- Superior high-rate charge and discharge capability
- High energy and power densities
- Up to 2 year shelf life
- Quick charge capability
- Long storage life on open circuit
- Deep cycle capability (up to 400 cycles to 80% depth discharge)
- Ability to recover from repeated deep discharges
- Wide temperature operability (-40ºC to +80ºC with metal jacket)
- UL recognised - file No. MH12544
