Batteries DC Power in a box
Everything has a purpose, this ethos lies at the core of our decision-making at Element 82 and batteries are no different. Cranking/Starting or high power/burst energy vs. Deep Cycle which is the term used for a discharge of energy before any recharge. That's the basis or starting point from there, capacity, expected life cycle, physical size, and layout considerations. There are so many options because batteries have so many applications.
Deep Cycle is used in house/service batteries in applications like a boat or motorhome when there is a sustained discharge from them before a recharge might occur overnight connected to mains or in a boat when the motor is started and recharge is provided via the alternator. Many brands of AGM batteries have a high power discharge capability, having said that it might only be 5-8 times its Amphour rating. So if a 100Ah battery refers to its ability to discharge 10 amps over 10 hours, it might also have a fast discharge capacity of 600 amps, referred to as 600CA (Cranking Amps). In these instances, while the battery might be classed as a deep cycle it has usable power for cranking. Numbers only get better when it's a 200Ah battery with 1200CA, you can see how this is sometimes why AGM batteries might be referred to as Dual Purpose Batteries.
- Description
- Specifications
- Post a comment

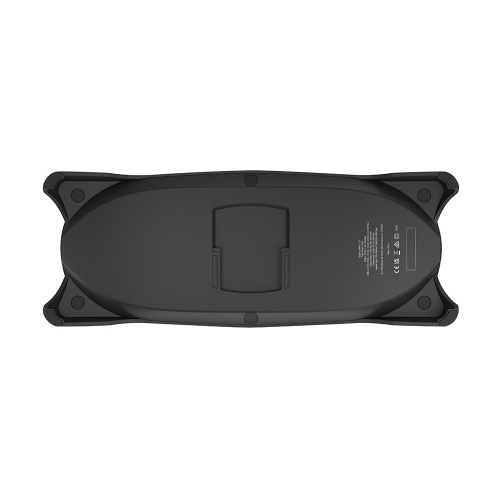

CTEK CS FREE is the world’s first truly portable battery charger and maintainer with Adaptive Boost technology.
You can charge and maintain any 12V lead acid or lithium vehicle battery anywhere without being connected to a power outlet. And if your battery’s flat, CS FREE’s revolutionary Adaptive Boost technology will get you going within 15 minutes.
Portable charging and maintaining you can take anywhere without being tied to a power outlet
• Internal battery lasts up to a year when fully charged
• Adaptive Boost, to safely get you going from a flat battery within 15 minutes
• Can be charged up and powered by solar or 12V battery for longer-term maintenance charging
• No modes to select – just turn it on, connect and the CS FREE will do the rest
• Countdown function shows you how long there is left before your battery is fully charged
• USB-C and USB-A outputs for charging tech like laptops, smartphones & tablets
• New ergonomic design with a tough and durable case
• 2 year ‘peace of mind’ warranty
| TECHNICAL DATA | |
| INPUT USB-C | 5 VDC – 25 VDC, 3 ADC/60 W max |
| OUTPUT | 12 V, 20 A/240 W max |
| START VOLTAGE | 3.0 V |
| AMBIENT OPERATING TEMPERATURE | -20 ˚C to +50 ˚C (- 4 °F to +122 °F) |
| AMBIENT STORAGE TEMPERATURE | -20 ˚C to +45 ˚C (- 4 °F to +113 °F) |
| BATTERY CHEMISTRY | Lead acid, Lithium |
| BATTERY TYPES 12 V | WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO4 |
| BATTERY CAPACITY | 10-130 Ah |
| DEGREE OF PROTECTION | IP54 |
| WARRANTY | 2 years |
| NET WEIGHT (UNIT WITH CABLES) | 1.4 kg |
| DIMENSIONS | (L x W x H) 248 x 98 x 78 mm |
| USB-A OUTPUT | 5 VDC, 2.4 ADC/12 W max |
| USB-C OUTPUT | 5 VDC, 9 VDC, 12 VDC, 15 VDC, 20 VDC, 3 ADC/60 W max |
| MAINS ADAPTER | |
| INPUT | 100 VAC – 240 VAC, 50 Hz – 60 Hz, 60 W max |
| OUTPUT USB-C | 5 VDC – 20 VDC, 3 ADC, 60 W max |
| CABLE LENGTH | 1 m |
| CABLE TYPE | USB-C |
| INTERNAL BATTERY | |
| CAPACITY | 66 Wh |
| CELL CHEMISTRY | Polymer Lithium-Ion |
| CELL TYPE | Pouch Cell |
| DISCHARGE TEMPERATURE | -20 ˚C to +50 ˚C (- 4 °F to +122 °F) |
| CHARGE TEMPERATURE | 0˚C to +45˚C (32˚F to 113˚F) |
| SHELF LIFE | 1 year |
| LIFE SPAN | 300 cycles, 80% |
