Lithionics Lithium Batteries
When you need a quality solution with a rock-solid smart app for monitoring one or multiple batteries in a parallel string Lithionics can deliver. Not only the power but the high peak surge demands using a U.S. manufactured BMS with the proven performance of over 2500 cycles to 80% Depth Of Discharge and an end-of-life capacity of 80%. These tests are performed at 130A discharge rate (C1) which really proves the high-performance continuous discharge rate of these batteries to be above 90% of all others on the NZ market.
- Description
- Specifications
- Post a comment
The Lithionics range of batteries is the only UL Listed manufacturer in the world. They bring together the harshest industry standards and provide a level of quality unsurpassed. Made with a high-power U.S. manufactured Active B.M.S. (Battery Management System), Bluetooth communication with lifetime monitoring, and ability to isolate the charge input from discharge output these batteries are second to none.
Our latest version includes an increased capacity from 125 to 130Ah @ C1 rate. Along with the M8 socket to connect an optional indicator remote button for turning the batteries on or off.
Features:
- 130 AMP HOURS Lithium 12V Battery
- PULSE AMPS: 1000 (1 SEC)
- Cranking Amp 625A
- 1664 WATT-HOURS
INTERNAL NEVERDIE® FEATURES:
miniBMS® Cell/Module Sensors and Microprocessors with Automatic Cell Balancing
NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Worry-Free Power for Engine Cranking
Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)
Pushbutton Storage Operation

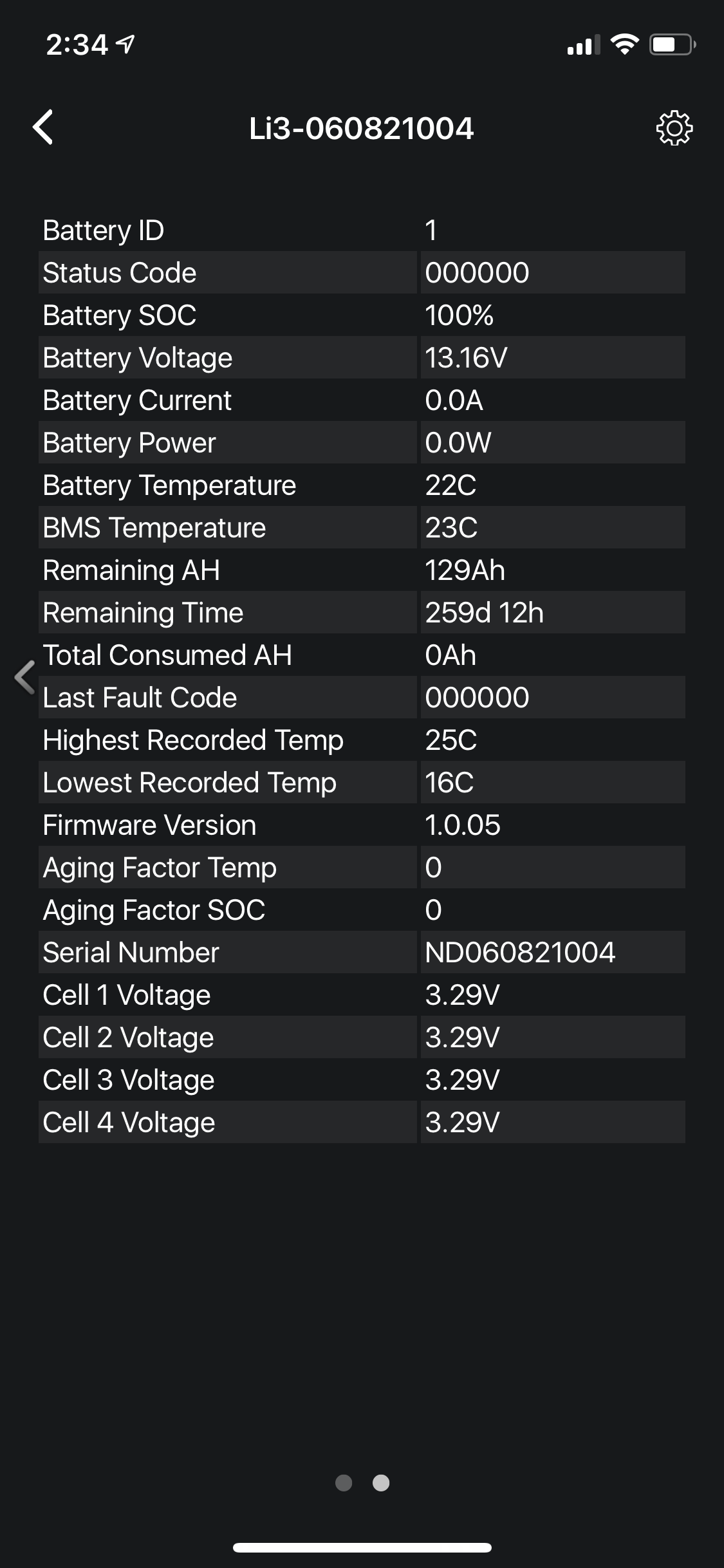

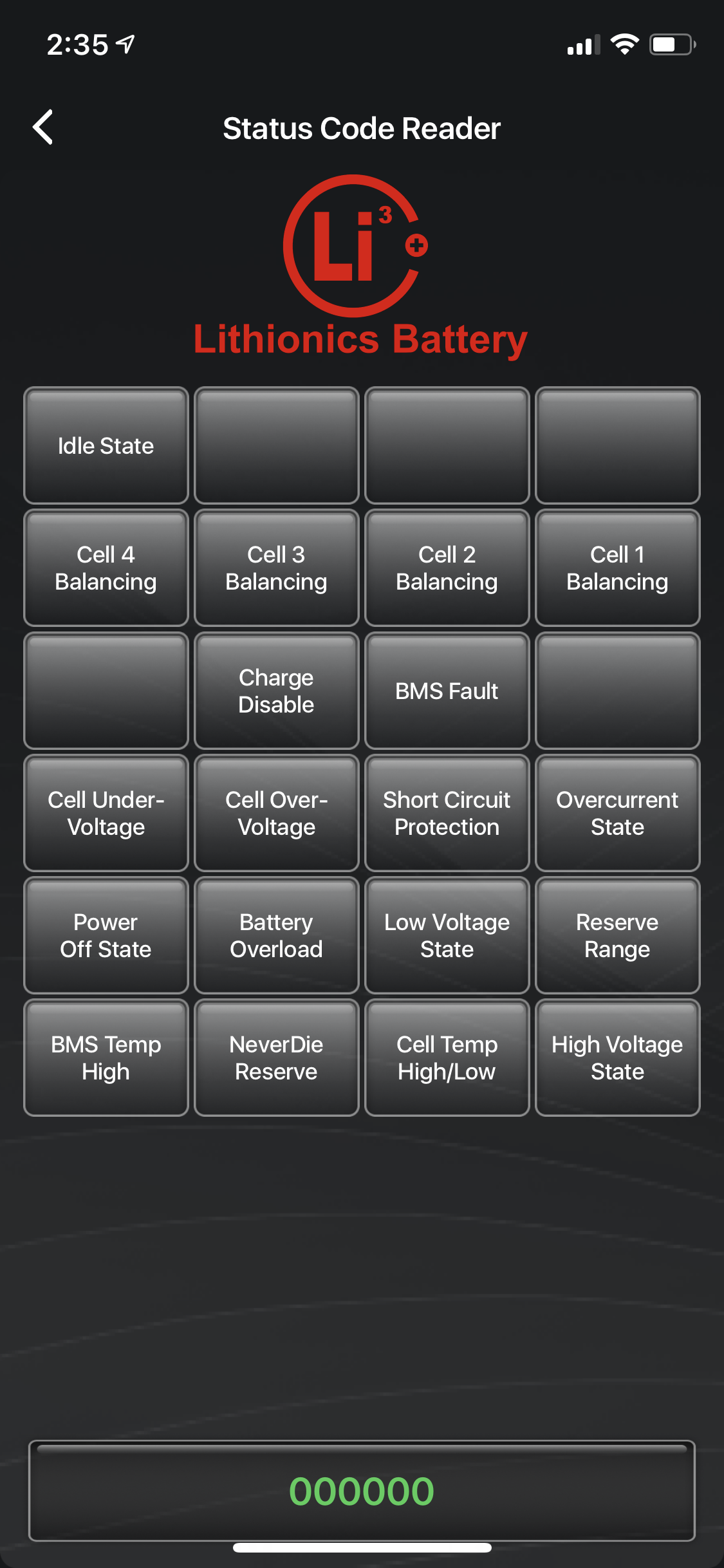

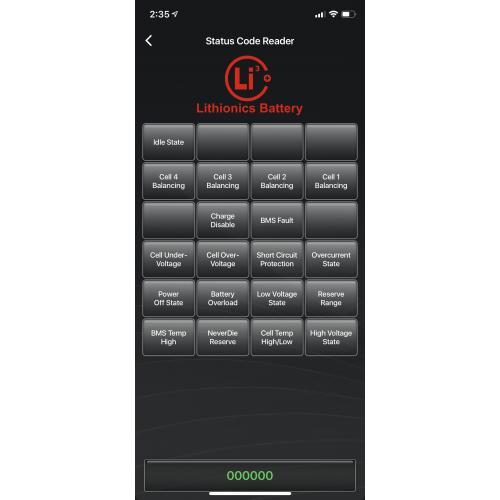

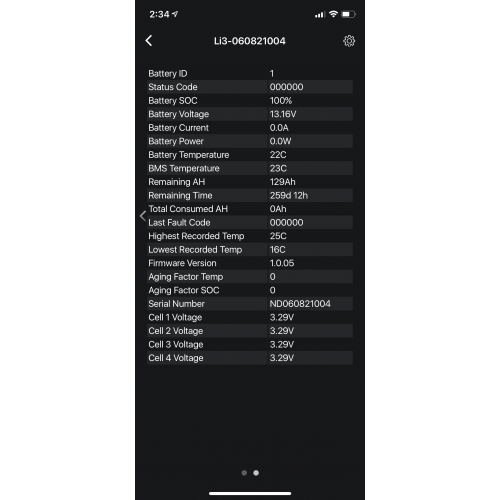

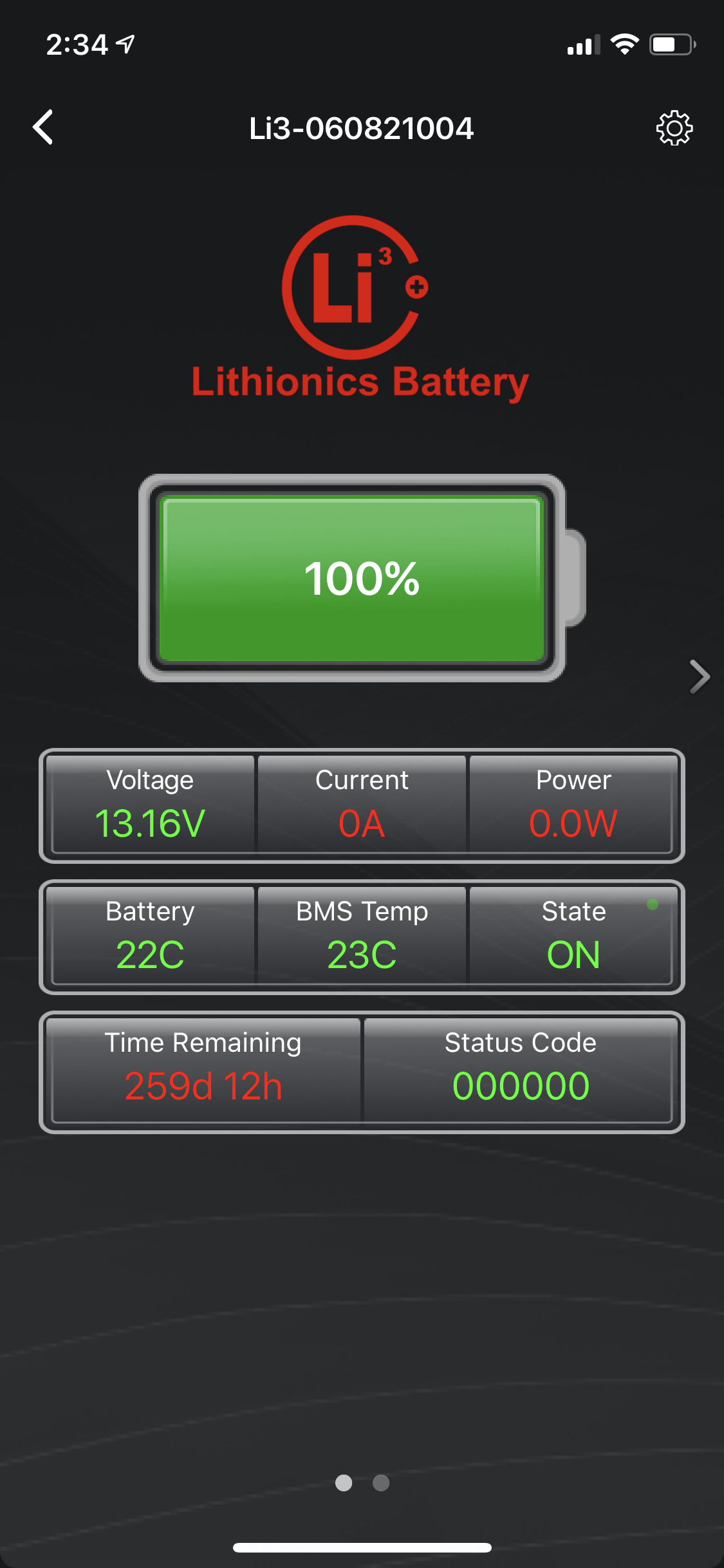

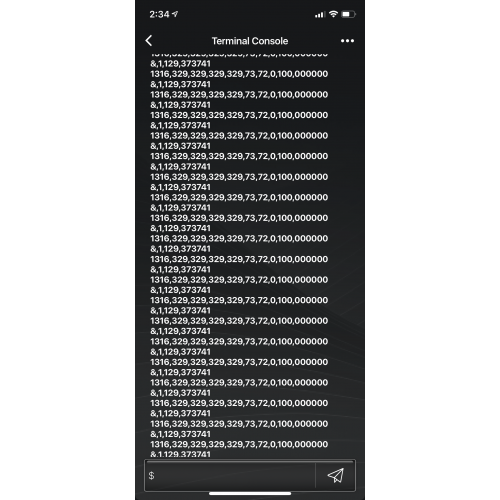

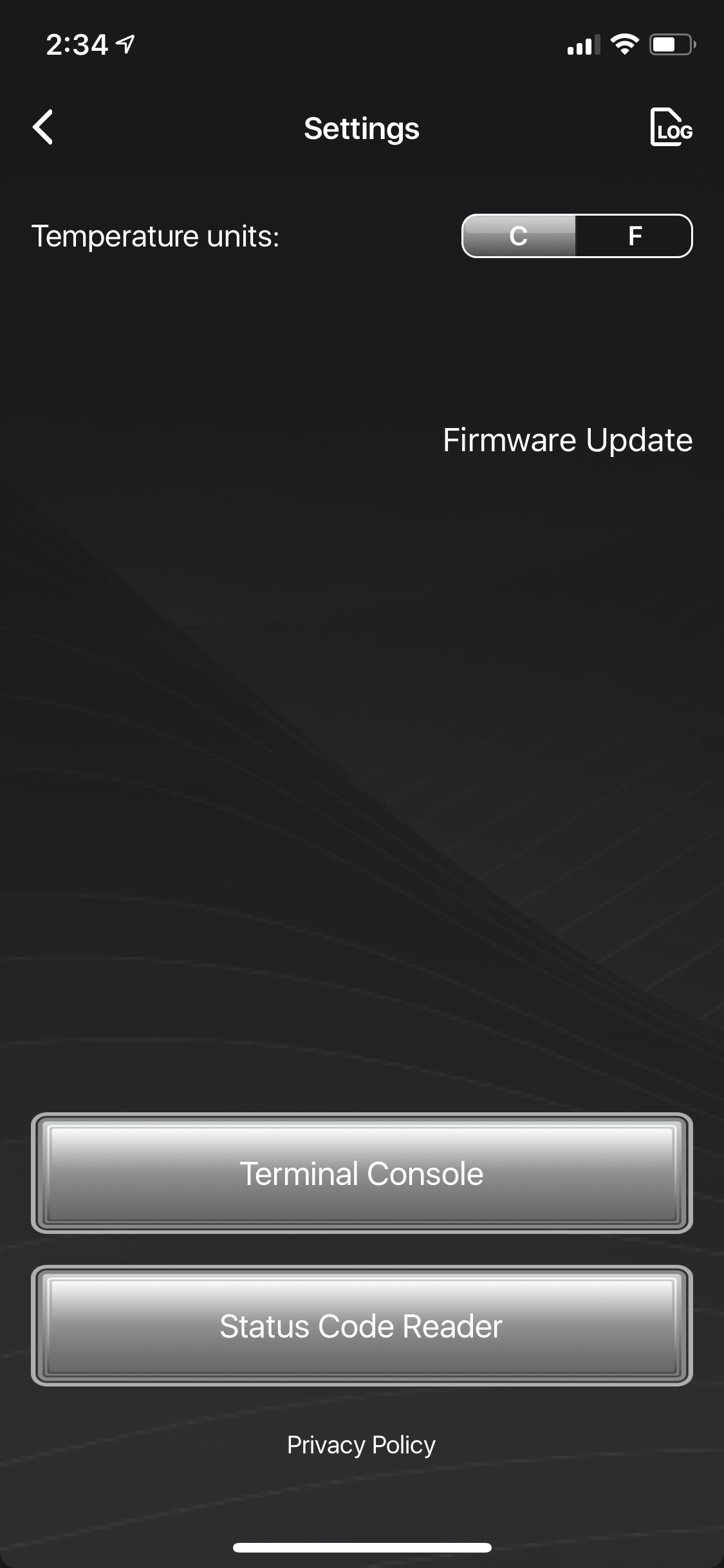

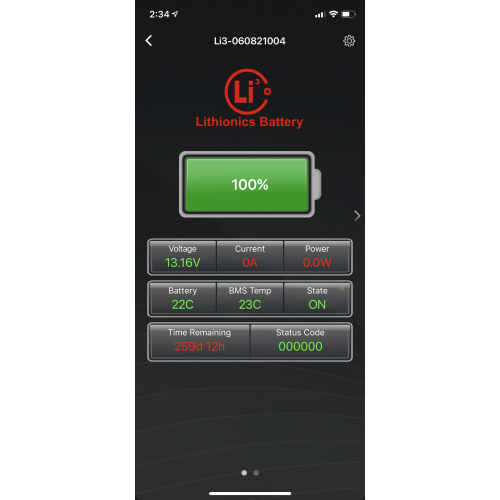

Available Optional Bluetooth®: Monitor Battery Voltage, State-of-Charge, Temperature, Current & Status Code remotely from your mobile device. Available for download on Google Play & Apple App Store

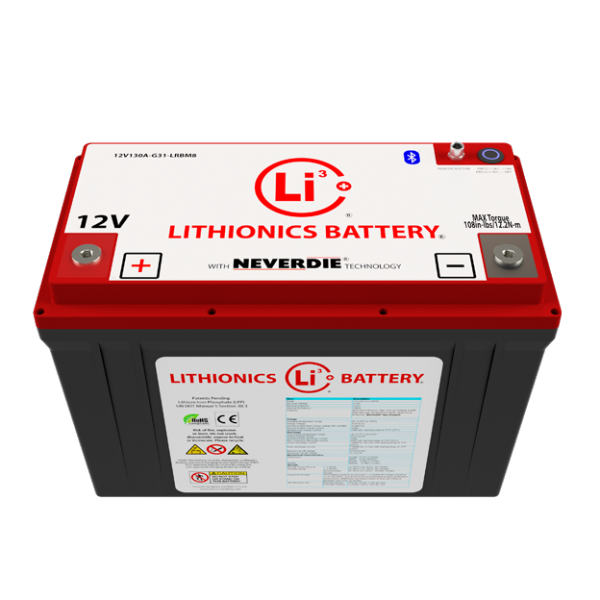

| Model: | 12V130A-G31-LRBM8 |
| Nominal Voltage: | 12.8 Volts |
| Nominal Capacity: | 130 AH |
| Nominal Watt Hours: | 1600 WH |
| Internal Resistance: | ≤4mΩ |
| Cranking Amps: | 625 Amps |
| Charge | |
| Charging temperature range: | 0°C to 45°C |
| Charge voltage: | 14.4V Recommended (14.6V Max.) |
| Recommended float charge voltage: | 13.4 |
| Recommended charge current: | ≤50A |
| Allowed max charge current: | 100A with starting temp of 25°C |
| Discharge | |
| Discharging temperature range: | -20°C to 45°C |
| Output Voltage Range: | 10.0~14.6V |
| Recommended discharge current: | ≤80A |
Max discharge current: |
100A with starting temp of 25°C |
| Max pulse discharge: | |
| Discharge cut-off voltage: | 11.2±0.1V |
| Mechanical characteristics | |
| Length: | 318mm |
| Width: | 165mm |
| Height: | 215mm |
| Weight: | 15.1Kg |
| Storage | |
| Storage Temperature & Humidity Range: | < 1 Month -20~35°C, 45~75%RH |
| < 3 Months -10~30°C, 45~75%RH |
|
| Recommended storage 15~35°C，45%RH~75％RH |
|
| Self-discharge rate: |
Residual capacity |
| Reversible capacity ≤1.5%per month; ≤8% per year |
|
| Long Term Storage: | If the battery needs to be stored for > 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months. |
